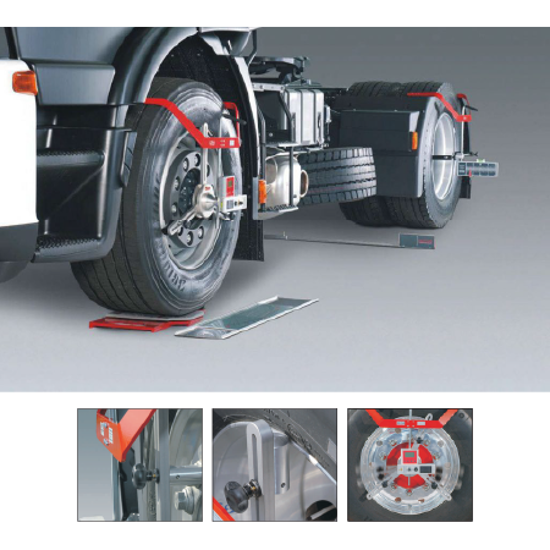

Koch KHD-30 Portable Laser Truck Wheel Alignment System

Engineered for truck and bus workshops and mobile service operators that need a fast, self-contained wheel alignment solution without the complexity of a PC-linked system, the Koch KHD-30 Portable Laser Truck Wheel Alignment System measures axle geometry in the vehicle's natural driving condition — reducing setup time and delivering accurate results on any surface.

Key Features:

• Axle alignment in driving condition eliminates the need to lift the vehicle, allowing toe, camber, castor, and KPI to be measured with the suspension loaded as it would be on the road — improving accuracy and reducing bay time.
• No PC link required makes the KHD-30 a truly standalone, self-contained system — ideal for workshops without dedicated alignment bays, mobile service operations, or locations where running a PC is impractical.
• 360° turnable laser head with battery power provides flexible, unobstructed measurement around the vehicle without cable constraints, speeding up the alignment process on large commercial vehicles.
• New inclinometer for camber, castor, and KPI measurement delivers precise angular readings, giving technicians the data needed to make accurate geometry corrections on trucks and buses.
• Easy-to-mount swivel measuring arms attach quickly to the wheel assembly, reducing setup time and allowing a single technician to position measurement heads efficiently across multiple axles.
• Quick single-toe, camber, castor, and KPI measurement of all axles and steering gear centre position provides a comprehensive geometry snapshot in a single pass.
• Standard unit for up to three axles covers the majority of rigid trucks and buses, with measurement data available immediately without post-processing or software analysis.
• Portable design allows the system to be transported between bays, workshops, or customer sites with ease — making it the ideal choice for fleet operators and mobile tyre and alignment service teams.
• Optional Trailer Kit (KAL-30) extends measurement capability to trailers, making the KHD-30 a complete alignment solution for mixed truck and trailer fleets.

Contact our sales team today to request a demonstration or obtain a quote for your workshop.
